Advantages of the electric folding bed with 5 levels of articulation

• Promotes ventilation and avoids the respiratory discomfort caused by lying in the same position all the time.
• It reduces swelling in the legs as it allows the feet to be tilted so that they are slightly higher than the rest of the body, without locating objects that make it impossible for the rest of the body to rest.
• The internal flow is improved, favoring it and preventing the appearance of other respiratory discomforts.
• Prevents the formation of sores on the skin (bedsores) caused by staying in the same position for too long.
• It allows the tension in the lower back to be regulated, achieving greater comfort.
• It has a multi-blade system that allows your mattresses to be ventilated, preventing heat and bad odors.
• Reduces the appearance of back pain, neck pain, pelvic discomfort and shoulder tension, as these limbs will find the ideal position for each person on these beds.
• It offers the ideal degree of rigidity for a comfortable rest.
• It allows you to rest or read in the most appropriate posture at the touch of a button.
• It is recommended to place it inside the frame of a bed.

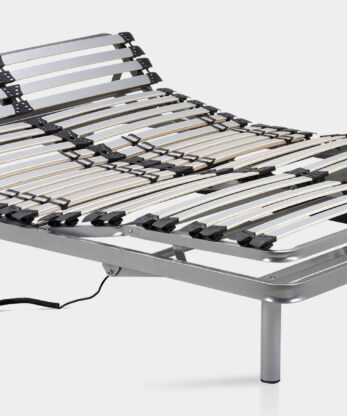

STRUCTURE:

External frame made of 60*20*20*1'2 mm pickled steel tube enamelled in silver-coloured thermoset epoxy.
Hinged internal frame made of 30*30*1 mm cold-rolled steel tube enamelled in silver thermoset epoxy, allowing five different positions.

BLADES:

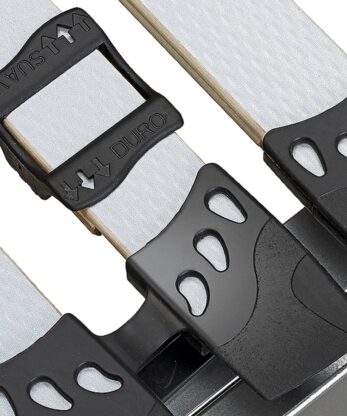

24 transverse slats made of 38 mm wide by 8 mm thick natural plywood curved and properly selected with non-slip aluminum foil, mounted on the double oscillating Hytrel support, allowing the slats to adapt to different body weights.
PVC tensioners, hardness regulator with double sheet in the central area for lumbar reinforcement, adjustable in intensity according to the user's comfort.
Sheets connected to the hinged internal frame by means of self-pivoting Hytrel beams (the latest generation of elastomer that cannot be deformed by use).

FINISHING:

Degreasing and anti-corrosion pre-treatment for phosphate washing.
Grey epoxy-polyester paint baked at 190º.
4 plates for the 50 round leg (metric 10).
TÜV-certified "German" electric motor attached to the platform by reinforced joints in round and rectangular steel tubes, with built-in control and safety system to return it to "0" in the event of a loss of power.

INFINITE DIFFERENT POSITIONS:

• 5 articulated planes with cable remote control, the lumbar plane being fixed, which in turn incorporates double slats and sliders for firmness adjustment.
• Independent articulation via a wired remote control.
